高速天车式加工中心机
商品详情

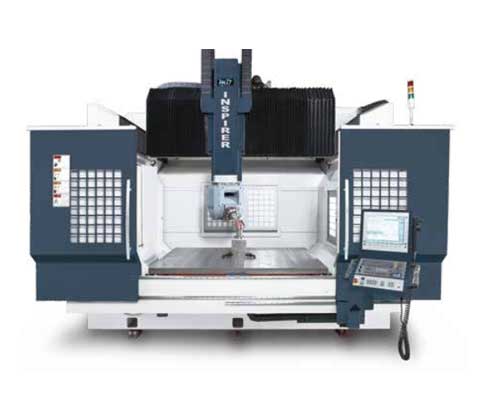

INSPIRER是具备高稳定性及动态效能之天车型加工中心机，其一体式的床身即使在没有地基的情况下仍可确保高几何稳定性。模组化之概念可提供不同之x轴行程以及三轴铳头及五轴同动铣头两种头部结构。
INSPIRER is a machining center machine with high stability and dynamic efficiency. Its integrated bed can ensure high geometric stability even without foundation. The modular concept can provide different head structures of x-axis travel and three-axis blunt head and five-axis simultaneous milling head.
INSPIRER之进给系统更加完整了其结构稳定性，提供了高动能及高几何及作业精度。尤其x轴之进给系统搭配双螺杆同进之天车结构并采用光学尺，更加确保其高效能。 INSPIRER同时定义了之人体工学设计。其工作台被设计为雕地之高度并且提供三方位工件起落之便利性：同时切屑及切削液之清理也被设计得十分容易并大幅减少操作人员花费于其上之工时。整体工作区域由全密式饭金完全密闭，确保健康之工作环境。
INSPIRER's feed system is more complete with its structural stability, providing high kinetic energy and high geometry and operating accuracy. In particular, the x-axis feed system is equipped with a twin-screw co-propelled crane structure and an optical ruler to ensure its high efficiency. INSPIRER also defines the best ergonomic design. The worktable is designed to be the best height for carving and provides the convenience of three-position workpiece lifting: at the same time, the cleaning of chips and cutting fluid is also designed to be very easy and greatly reduce the man-hours spent by operators. The overall work area is completely enclosed by a fully-secret meal to ensure a healthy working environment.
INSPIRER之五轴同动铣头2aHs确保即使高功率高扭力之切削应用下小之震动，其简洁的尺寸避免可能之干涉问题.C轴由扭力马达直接驱动，A轴则由无齿隙之何服马达驱动。采用油压打刀系统以确保使用A/C轴加工时适当之刚性及稳定性。
INSPIRER's five-axis simultaneous milling head 2aHs ensures that even with minimal vibration in high-power and high-torque cutting applications, its compact size avoids possible interference problems. The C-axis is directly driven by the torque motor, and the A-axis is free of backlash Servo motor drive. Adopt hydraulic cutting system to ensure proper rigidity and stability when machining with A / C axis.
